KEY PROPERTIES

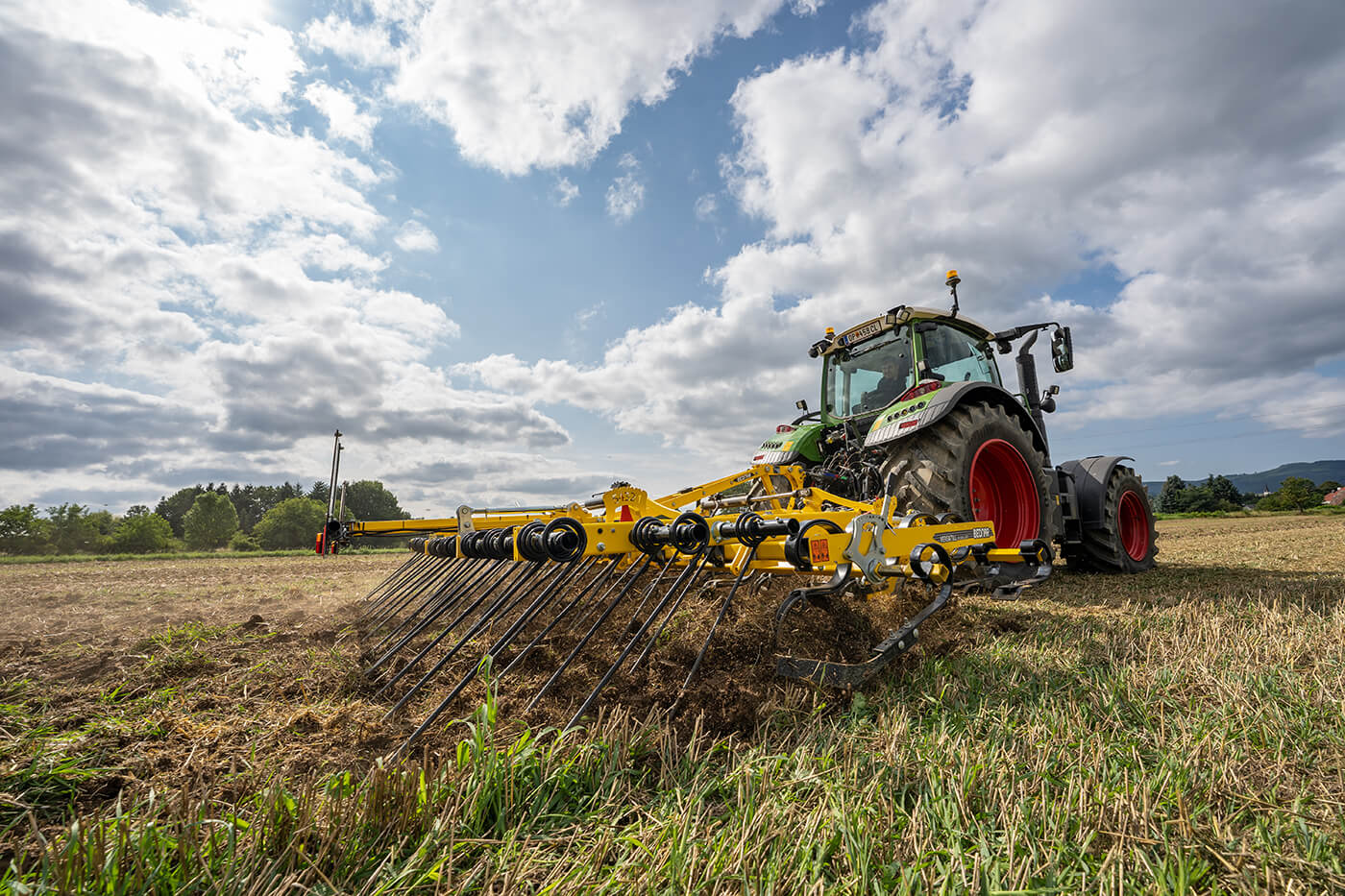

A semi-mounted cultivator with a wide range of application throughout the year, designed for shallow cultivation, seedbed cultivation, and mechanical weeding.
Intense and quality soil cultivation.
The VERSATILL VN_L mounted cultivator has individual working tines arranged in four rows. The spacing between the individual tines is 5.9 inches. These technical parameters enable the machine to achieve excellent undercutting of the soil profile and mixing crop residue with soil.
Ideal for the creation of a fine seedbed structure.
VERSATILL VN_L is also suitable for early spring soil cultivation thanks to its light, but durable construction. Four rows of tines can be equipped with various types of working chisels or shares. The main working section is followed with a packer that crumbles and closes the soil profile. The harrow provides the final even distribution of soil particles.
VARIOUS TYPES OF TINES
Standard and Heavy-Duty versions.
The VERSATILL VN_L mounted cultivator is equipped with the “Standard” tines (vibration, single-spring tines). These tines are suitable for lighter types of soil. In the case of heavier soils and frequent use of the machine for shallow cultivation of up to 3.9 inches, we recommend using the HD tines, or “Heavy-Duty” (reinforced, two-spring vibration tines).
Choose the ideal equipment for stubble ploughing or seedbed cultivation.
Tines can be equipped with sweeps or chisels according to the expected application. The 200-mm sweep guarantees 100% overlap. The LONG-LIFE 200-mm sweep has carbide cutting edges that increase its durability. The 60 mm double-sided chisels are suitable for early spring soil cultivation or stubble ploughing in lighter soils. We also offer 50 mm LONG LIFE chisels with carbide cutting edges.
A perfectly prepared field in one pass.
Driving across the field should be kept to minimum especially during spring cultivation, in order to preserve winter moisture in soil. The VERSATILL VN_L mounted cultivator can be equipped with the hydraulically-controlled Crushbar, mounted in the front, with a comfortable control of the working angle from the tractor cabin during work.
Easy working depth setting.
As a customer, you can choose from two types of working depth control. The working depth is set mechanically (standard equipment), or VERSATILL VN_L can be equipped with the highly comfortable hydraulic working depth regulation from the comfort of the tractor cabin.
Provide excellent terrain tracing.
The side frames of the VERSATILL VN_L mounted cultivator can be equipped with support wheels for perfect terrain tracing on request. They help cultivate the field along the entire width of the machine evenly at the set working depth.
TECHNICAL DATA
MACHINE DESCRIPTION
For interactive machine description go to https://www.bednar.com/ca/versatill-vn-l/
