KEY PROPERTIES
TERRALAND TN chisel plough for deep loosening, including the option of replacing tines and rollers to switch the machine to a professional subsoiler.

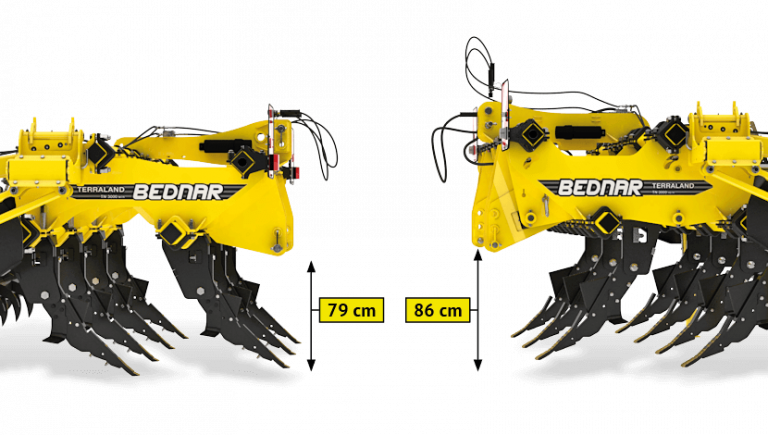

Two depth levels of soil cultivation, two types of protection.
TERRALAND TN is manufactured in two versions, TN_D with a maximum working depth of 26 inches, and TN_M with a maximum working depth of 22 inches. The tine protection in both versions is either mechanical using shear bolts, or hydraulic.

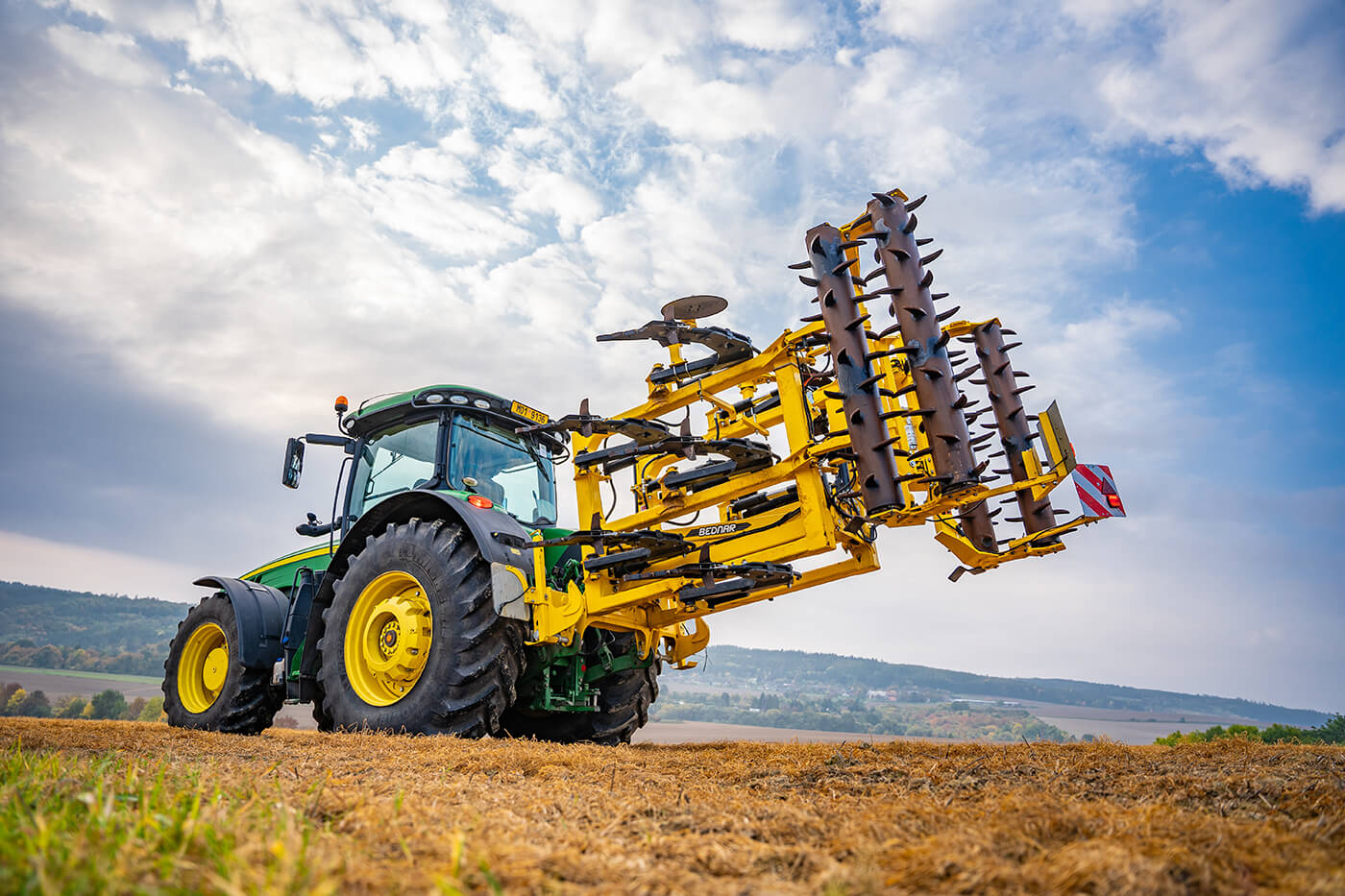

Working width 13 feet, transport width 10 feet.
The mounted TERRALAND TN 4000HD9 chisel plough is equipped with 9 tines with a spacing of 18 inches. The individual tines are fitted with hydraulic overload protection. The TERRALAND TN 4000 HD9 chisel plough has a transport width of 10 feet to ensure trouble-free transport on roads. The TN 4000 HD9 chisel plough can be also equipped with the rear V-RING packer.
TERRALAND TN both as a chisel plough and professional subsoiler.

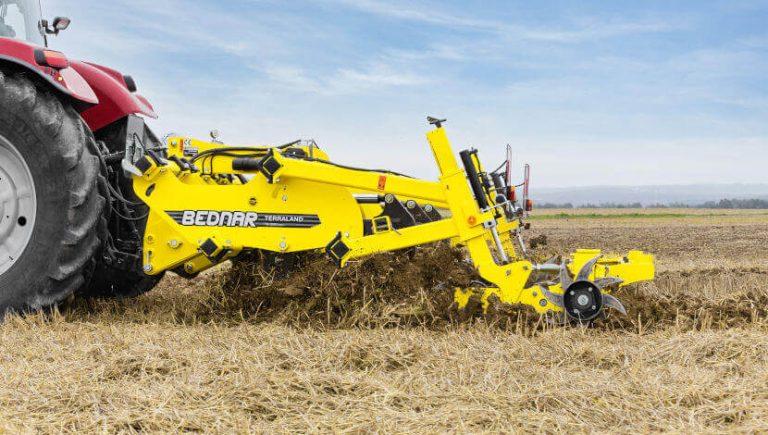

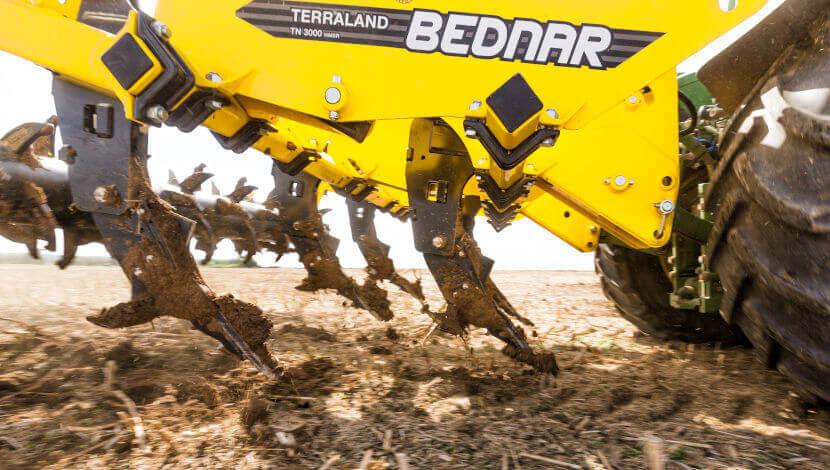

Deep loosening
The TERRALAND TN chisel plough in combination with Active-Mix tines and spiked rollers is suitable for deep loosening. The special shape of the tines provides easy soil penetration, and excellent loosening and mixing effect. In one pass, the soil profile is loosened in depth and the soil surface is intensely mixed and levelled.

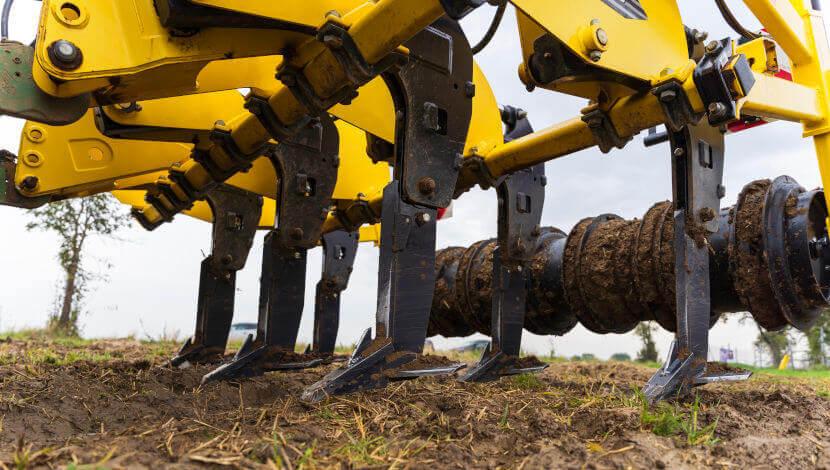

Subsoil tillage
The TERRALAND TN frame can be equipped with special Zero-Mix tines, with a negative angle, and the heavy steel Cutpack for subsoil tillage without active mixing of soil. This operation is suitable for disrupting hardened soil layers, aerating the soil profile, and creating a proper soil environment.
The advantage for you? A longer service life.
The individual parts of the TERRALAND TN chisel plough are assembled, not welded. The assembled parts (tines to frames, internal frames to tine beams) have a multiple-times longer service life than when those exposed parts are welded together.
Two operations in one pass save time and money.

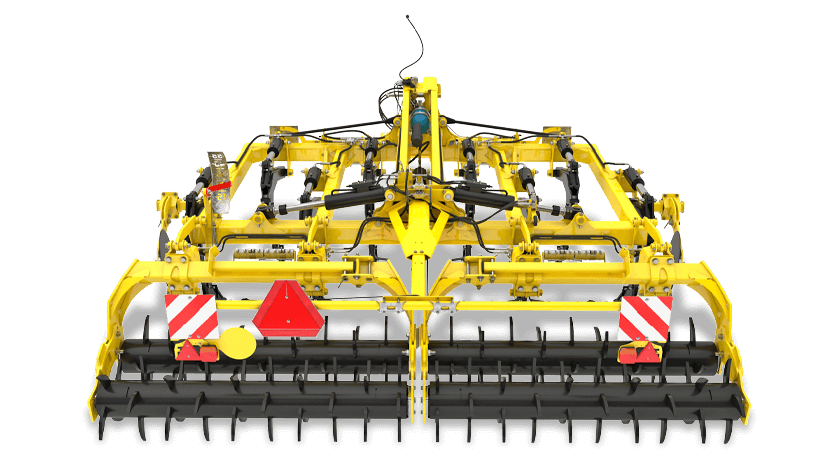

The TERRALAND TN chisel plough consists of two rows of tines, followed by tandem spiked rollers. Active tines provide deep soil loosening, tandem spiked rollers overlap and offer an excellent crumbling effect. The advantage of the rollers is that they can be adjusted according to the required work, for example, in rocky soils.
For even more intense loosening effect.
TERRALAND TN 3000
The TERRALAND TN 3000 machine frame can be equipped with five or seven tines. The spacing of tines when five are used is 23.6 inches. When seven tines are used on the TERRALAND TN frame, the spacing is 15.7 inches. This design offers even better loosening and mixing of soil profile.

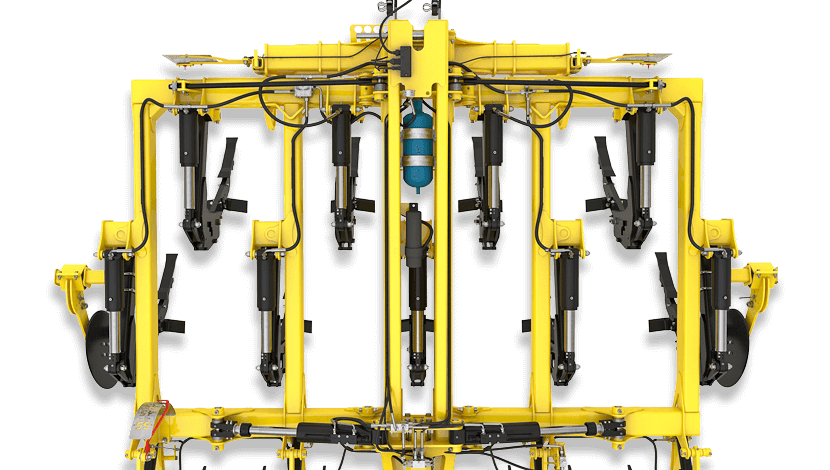

TERRALAND TN 4000
The TERRALAND TN 4000 machine frame can be equipped with seven or nine tines. The spacing of tines when seven are used is 22.2 inches. The model with nine tines offers spacing of 16.7 inches.
Modify your machine according to your conditions.
Active-Mix tines can be equipped with chisels with a width of 70 mm for intense loosening, or with a width of 40 mm for demanding conditions and deep work. The tine wings undercut the disrupted bottom layer to eliminate clod formation. Chisels and wings are also available in the extremely durable LONG LIFE version (40 mm, 55 mm and 70 mm). The deeper you work, the narrower the chisel should be.
TECHNICAL DATA
MACHINE DESCRIPTION
