TERRALAND DO combined chisel plough for incorporation of large quantities of matter.

The efficient combination of the disc and chisel sections allows to combine two operations in one pass. The high machine clearance, and the spacing of the individual discs and chisels are modified for incorporation of large quantities of organic matter in the form of catch crop, crop residue, or manure.

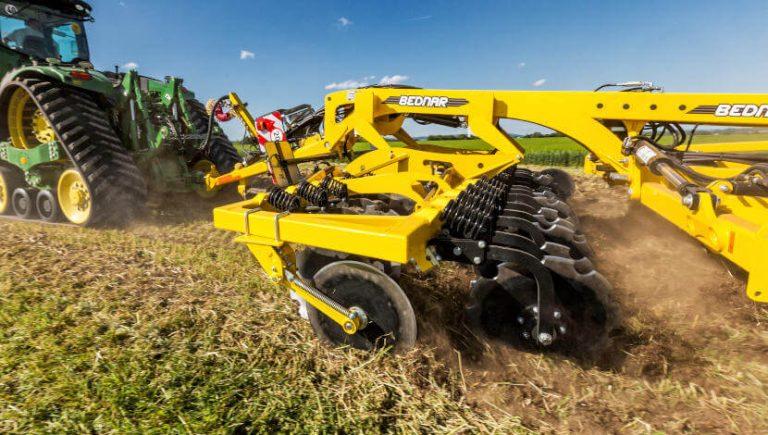

Excellent cutting and incorporation of crop residue.

The TERRALAND DO combined chisel plough is especially designed for processing large quantities of crop residue, for example, after grain maize. It is equipped with two rows of large serrated discs with a diameter of 27.2 × 0.2 inches and independent mounting, and NON-STOP protection with a pressure of 595 lb, with outstanding cutting and incorporation of crop residue in soil up to a depth of 7.1 inches. The spacing of the individual discs in the row is 12.8 inches, ensuring trouble-free work with high throughput.

TERRALAND DO both as a combined chisel plough and professional subsoiler.

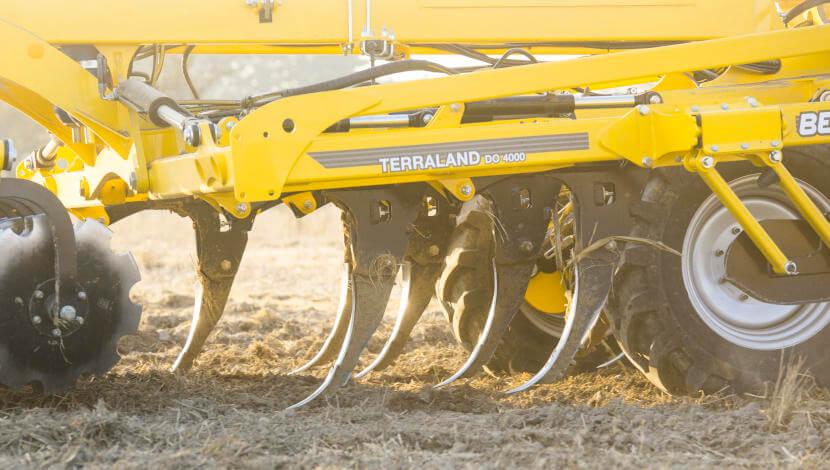

Deep loosening

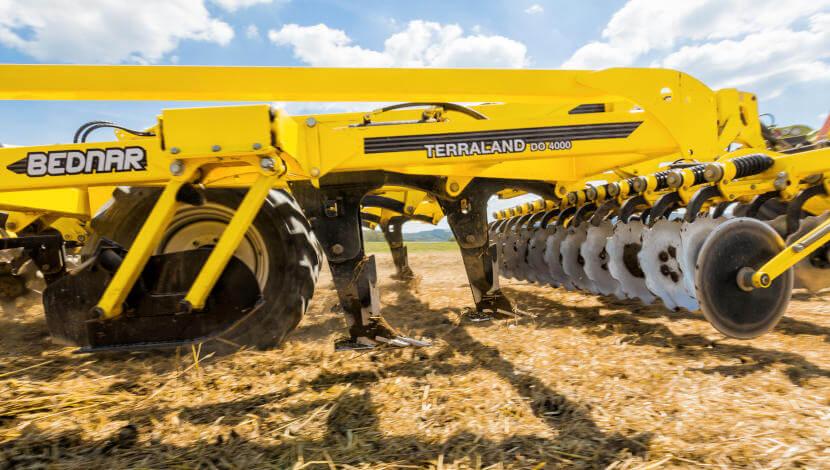

Subsoil tillage

The TERRALAND DO frame can be equipped with special Zero-Mix tines, with a negative angle, and the heavy steel Cutpack for subsoil tillage without active mixing of soil. This operation is suitable for removing hardened soil layers, aerating the soil profile, and creating a proper soil environment.

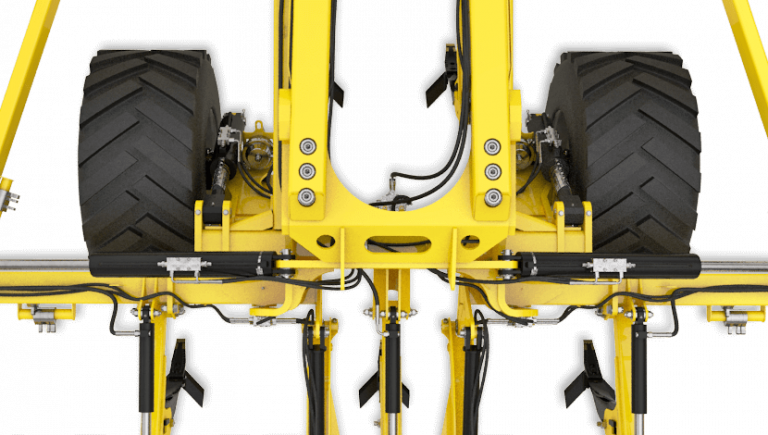

The smart design allows working without the rear packers.

Rear packers might get clogged when cultivating heavy sales in the late season or working in extreme conditions. The integrated axle and the placement of the tines after the axle makes it possible to use the TERRALAND DO combined chisel plough in wet conditions as well. Moreover, the axle reduces the turning radius at headland and allows for an easy approach to the next take.

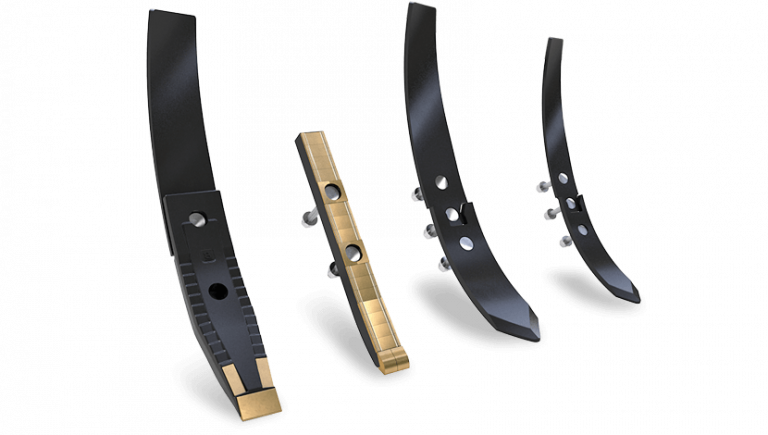

Modify your machine according to your conditions.

The TERRALAND DO combined chisel plough can be equipped with four types of chisels, which let you adjust the machine for deep loosening or shallow stubble ploughing after harvest. A properly selected working chisel type is also important in terms of the character of the soil to be processed, or the season. There are chisels with a width of 80 and 60 mm, or LONG-LIFE chisels at 1.5 and 3 inches, fitted with carbide tips for higher durability. The deeper you work, the narrower chisel should be used.

Easy working depth adjustment according to the conditions.

The machine working depth can be comfortably set from the tractor cabin using hydraulic rollers that control the rear packers. The disc working depth can also be set using hydraulics. The depth of the disc and the chisel section is set independently.
