KEY PROPERTIES
A wide cultivator with a standard design suitable for traditional soil cultivation, as well as minimization systems.
![SWIFTER SM seedbed cultivator 8 OPERATIONS IN ONE PASS](/images/bednar/7_8_pracovnich_operaci_jeden_prejezd-1-768x435.png)
Creating a seedbed for proper and even crop emergence.
Combining several operations into one means fewer passes through the field and lower costs of soil preparation. The front leveller perfectly levels any unevenness. The front slatted roller crumbles the clods. The main working section undercuts, aerates and warms up the soil layer. The final clod crumbling is provided by various types of rollers in combination with other equipment behind the rollers.
![SWIFTER SM seedbed cultivator sweep section](/images/bednar/sb_sekce_00063129.png)
Adjusting soil cultivation to the needs of the crop.
Sweep section
A sweep working section (summer and autumn soil cultivation – winter cereals, oilseed rape)
This working section can be used for summer and autumn preparation when soil needs to be loosened, undercut and mixed after the previous harvest. The 10.6 inches sweeps in two overlapping rows undercut the soil profile along the entire machine width, creating a firm bottom. At the same time, soil is aggressively processed thanks to the working angle of the sweeps, creating a loosening top layer. Each sweep is mounted on a flexible tine that provides a 3D effect (horizontal and vertical movement) which protects the sweep from damage.
![SWIFTER SM seedbed cultivator SB sweep section](/images/bednar/sb_sekce_jarni_radlicky_00593708.png)
SB sweep section
SB sweep section with spring sweeps (spring soil cultivation – sugar beet)
The section is especially suitable for spring cultivation before seeding sugar beet where it is required to adequately manage spring moisture, but still prepare a precise seedbed. The sweep angle does not mix soil vertically, but the soil is still undercut in the whole area thanks to the overlapping sweeps that are 170 mm wide. Another benefit is the reduced demand on the towing vehicle power.
![SWIFTER SM seedbed cultivator gamma-point](/images/bednar/pracovni_sekce_gamma_02003567-1.png)
Gamma-point section
Gamma-point working section (spring soil cultivation – spring cereals, corn)
This section is suitable for early spring operations, such as required before seeding barley. The four rows of gamma points at a negative angle aerate and warm up soil without bringing wet particles to the surface, which preserves winter moisture. It is important for a fast start of the growth of spring crop. The spring-loading of each tine enables working at high speed. The gamma points for this section are also available in the LONG LIFE version.
![SWIFTER SM seedbed cultivator attached to tractor](/images/bednar/swifter_sm18000_dji_0057-768x435.jpg)

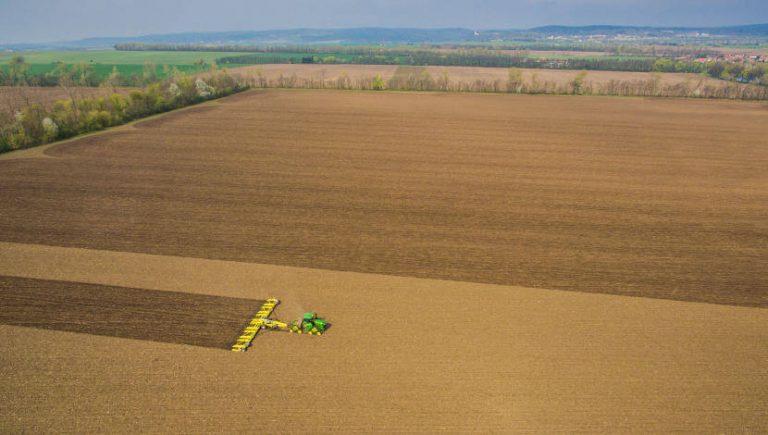

Make the most of your tractor power.
The SWIFTER SM wide cultivator is designed for aggregation with the most powerful tractors on the market, such as quadtrac tractors. In combination with a working width of up to 59.1 feet, the high engine power, and the working speed, it is possible to achieve high daily outputs of up to 230 ha. Therefore, there is no need to deal with two-shift operation.
![SWIFTER SM seedbed cultivator](/images/bednar/swifter_sm_top_view-768x435.png)

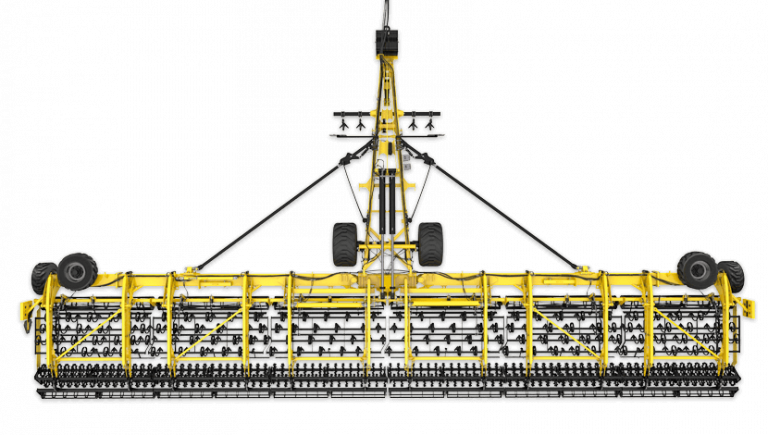

Does not require many points of lubrication.
SWIFTER SM cultivators only have two side frame sections, unlike other competitive products in this category. The structural design of the machine reduces the number of hydraulic cylinders where side frame pressure could be lost. This design also reduces the number of points of lubrication, the overall wear of the machine, and it simplifies manipulation with the machine, both in the field and on the road.
![SWIFTER SM seedbed cultivator](/images/bednar/swifter-sm-14000-moutnice_dji_0670_830x470-768x435.jpg)

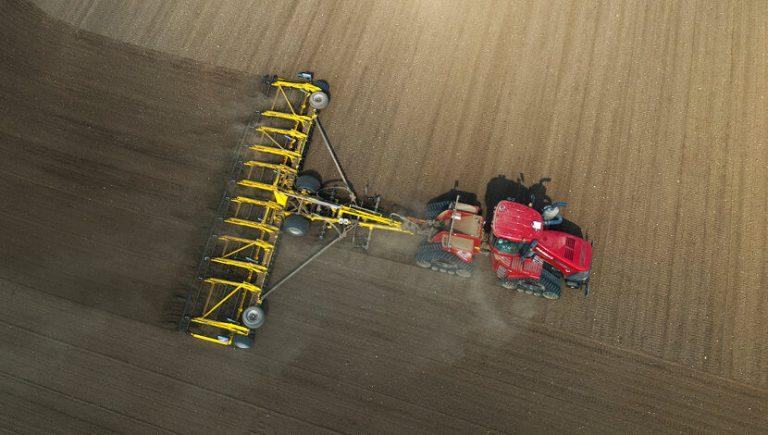

Do not lose time, work at headland without having to lift the machine.
The design of the SWIFTER SM cultivator enables turning the machine at the headland without having to lift the working sections. Even so, we recommend turning on the headland with slightly excavated working sections and a larger turning radius. The fixed connecting rods of the BAR-LOCK system stabilize the side frames not only when turning, but also at higher working speed.
![Bar-lock system](/images/bednar/swifter_sm_bar_lock_system-768x435.png)

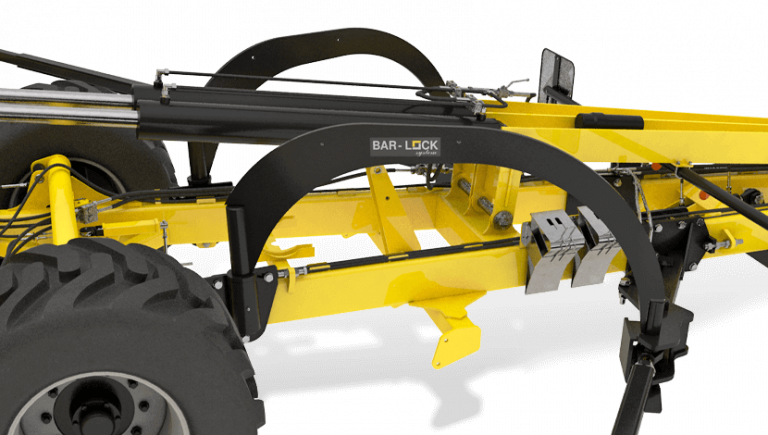

Quick two-minute machine folding and unfolding.
BAR-LOCK is a lock bar system. The system ensures a continuous, easy and safe unfolding of the machine from the transport to the working position, as well as machine reversing. Also, it secures the connecting rods of the side frames with the drawbar when in the working position. The entire operation is done from the comfort of the tractor cabin.
TECHNICAL DATA
MACHINE DESCRIPTION
For interactive machine description go to https://www.bednar.com/ca/swifter-sm/
