KEY PROPERTIES
A mounted cultivator for deep soil cultivation of up to 13.8 inches, including shallow stubble ploughing after harvest.
Models for both light and heavy soils.

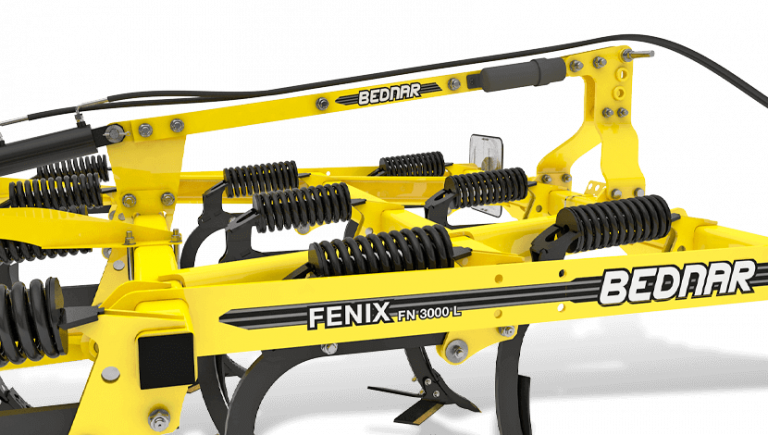

The FENIX FN_L cultivator is equipped with horizontal or shear pin protection. This model is suitable for light to medium-heavy soils. The low protection weight makes it possible to aggregate the machine with tractors with lower power.

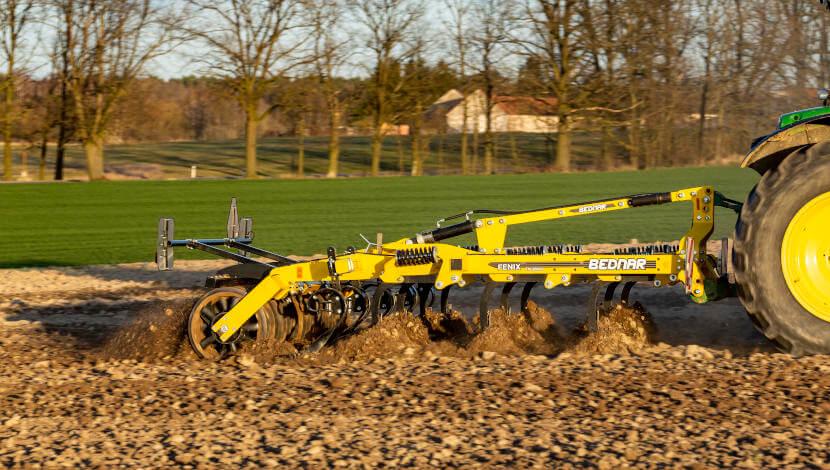

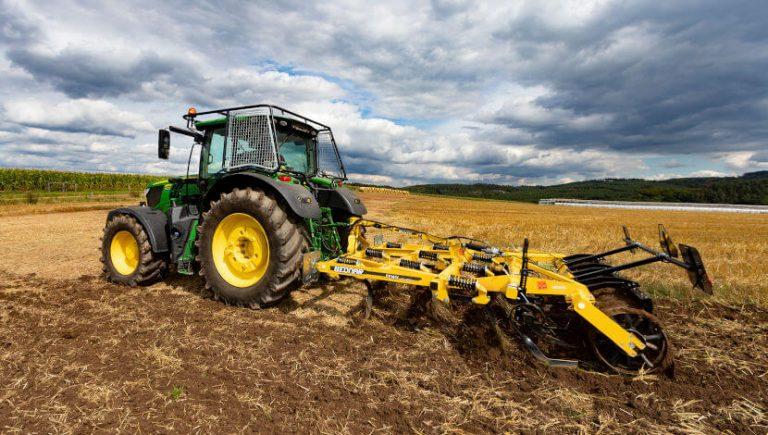

FENIX FN_L mounted cultivator for deep and shallow soil cultivation.

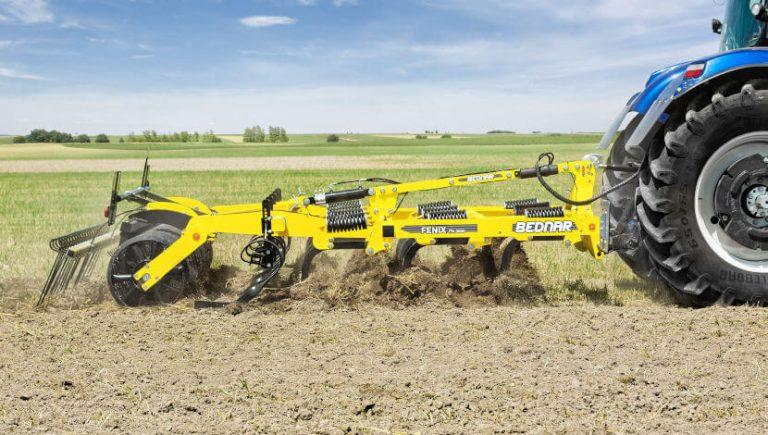

Deep loosening
The FENIX FN_L mounted cultivator can carry out deep loosening up to the maximum depth of 13.8 inhces. Deep loosening is recommended especially before seeding deep-root crops, or in the autumn, as it prepares the foundation for the formation of a strong root system, through which the plant will absorb water and nutrients. Deep loosening helps achieve an adequate soil structure with the proper size of the individual soil particles, and it appropriately starts the functional and water regime of soil.

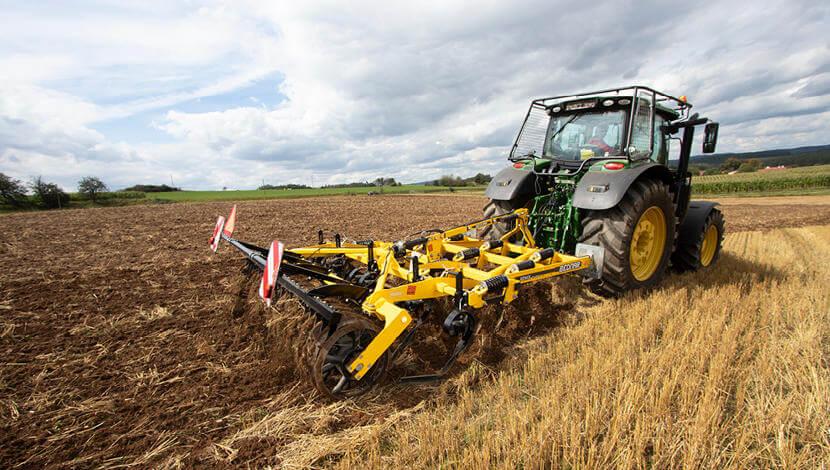

Shallow stubble ploughing
The design and a wide range of chisels make the FENIX FN_L mounted cultivator suitable for shallow stubble ploughing up to 5.9 inches. We recommend fitting the FENIX FN_L cultivator with chisels with wings for excellent soil profile processing during stubble breaking. A properly performed stubble ploughing is important for the elimination of the growth of weeds, incorporation of crop residue into soil, it reduces the evaporation of soil moisture, and starts the growth of wanted seeds.
Seedbed preparation
The mounted cultivator is also suitable for universal use throughout the year, for example for seedbed preparation and excellent surface leveling, which is guaranteed by a combination of rear spring levelling section or levelling disc section and rear packers.
Bring an excellent loosening and mixing effect.

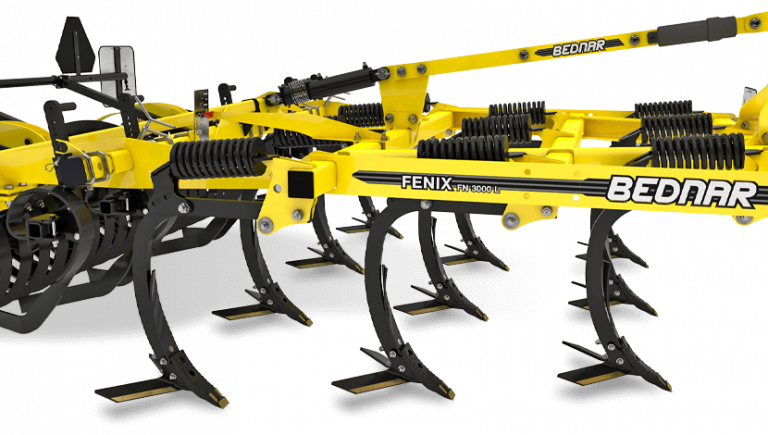

The FENIX FN_L deep cultivator has working tines arranged in three rows, with a spacing of 11.8 inches between the individual tines. This arrangement brings an excellent loosening and mixing effect because the soil is undercut along the entire machine width with subsequent crop residue mixing.
Allows for a wide selection of working tools.

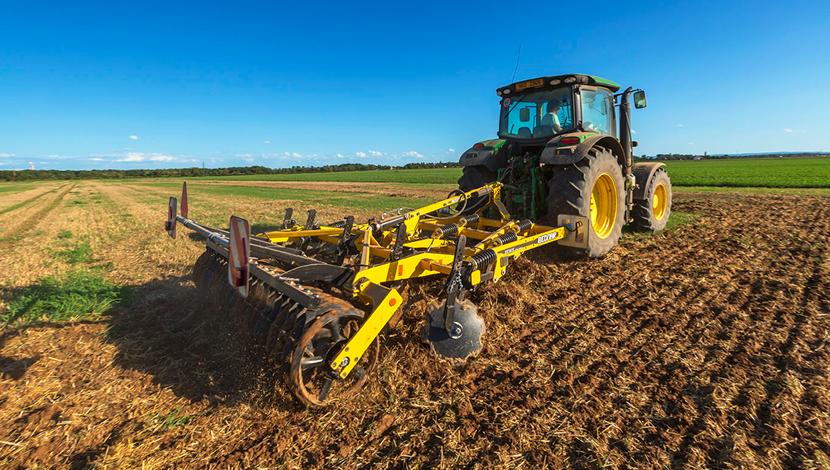

The FENIX FN_L mounted cultivator is a suitable machine for deep soil cultivation as well as shallow stubble ploughing after harvest. The FENIX FN_L cultivator can be equipped with a whole range of working parts in relation to the soil character or customer’s requirements. The three rows of tines are followed with a backfilling section, which can be fitted either with backfilling rods or discs. It is also possible to mount a harrow for final surface finish after the rollers.
Allow adjusting the machine to deep loosening or shallow stubble ploughing.
The FENIX FN_L deep cultivator can be equipped with four types of working chisels and three types of wings, which let you adjust the machine for deep loosening or shallow stubble ploughing after harvest. A properly selected chisel and wings type is also important in terms of the character of the soil to be processed, or the season.
Durable design for aggregation with smaller tractors as well.
The FENIX FN_L cultivator is mainly designed for aggregation with smaller tractors, that is why weight is an important parameter. In relation to the selected model, the weight of the FENIX FN_L cultivator ranges from 2 976 to 8 376 lb. The FENIX FN_L cultivator has a light, but robust frame and it is easily aggregated with tractors with a horsepower of 150.
It is up to you what control you choose.
The FENIX FN_L deep cultivator can be equipped with easy mechanical or full hydraulic control of the working depth setting according to your requirements.
Save soil, time and money.

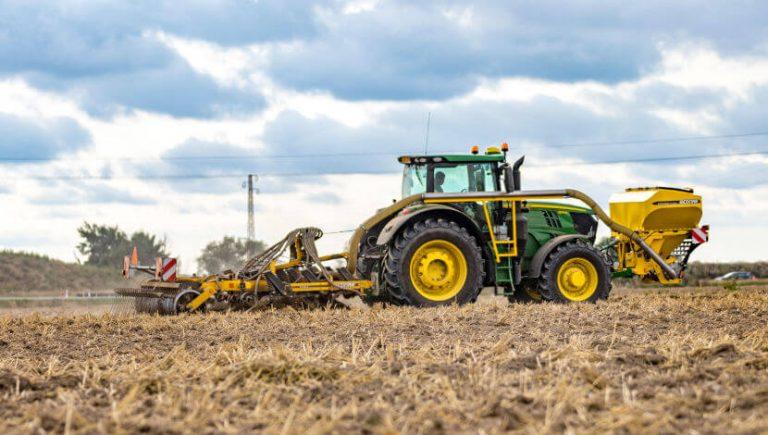

When performing deep loosening, it is recommended to apply the required nutrients into the soil profile, for example, in the form of mineral fertilizers. For this operation, the FENIX FN_L deep cultivator can be equipped with a set for fertilizer application, consisting of a distribution head and distribution leading to the individual sweeps.
Establishing catch crop in one pass.
The FENIX FN_L deep cultivator can be equipped with the BEDNAR ALFA DRILL seeding unit while in production, for seeding catch crop and small-seed plants during stubble breaking, all in one pass. The time and fuel savings are considerable. The seeding unit has a capacity of 400 litres.
A wide range of packers for any soil conditions.
The FENIX FN_L mounted cultivator has an exceptionally high variability of various types of rear packers (heavy steel packers, traditional rod packers, or double-roller packers). The closure and compaction of the cultivated surface provides even emergence of unwanted seeds, weeds, and reduces evaporation of soil moisture.
TECHNICAL DATA
MACHINE DESCRIPTION
