KEY PROPERTIES
The ATLAS AE_PROFI model line includes robust wide disc cultivators with properties suitable for processing large quantities of crop residue.

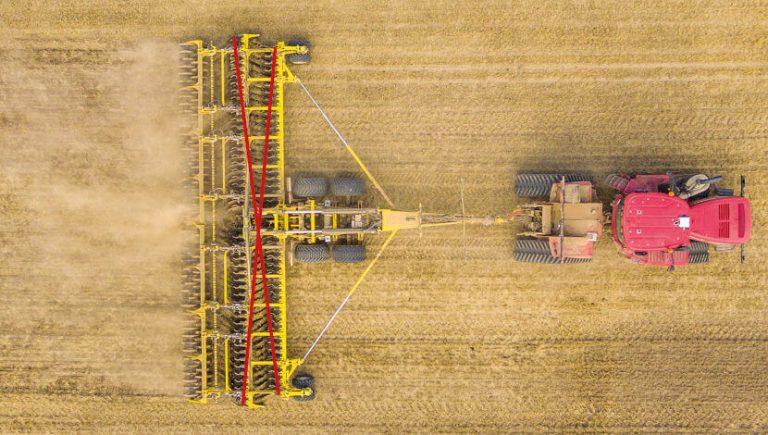

Precise disc cultivator guidance in the right track.
ATLAS AE_PROFI wide disc cultivator models have disc sections arranged in the shape of X. This innovative technical design eliminates drifting of the machine to the side. That allows the disc cultivator to precisely trace the tractor track. The central double disc prevents the risk of ridge formation.
For processing large quantities of mass without the risk of clogging.

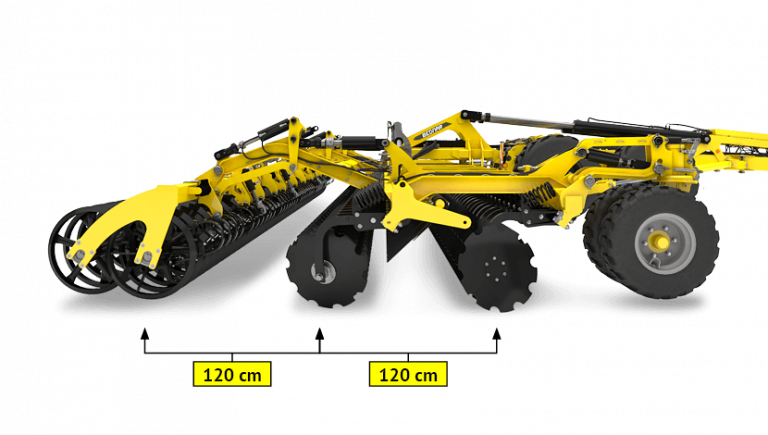

The ATLAS AE_PROFI heavy disc cultivators have properties that predetermines them to process large quantities of crop residue, in particular grain maize, catch crop, or organic matter. For trouble-free work and elimination of potential clogging of the machine, even when working in wet conditions, this line offers a sufficient distance between the individual working sections. The distance between the front and rear row of the disc section is 47.2 inches and the distance of discs to the rear packer axis is up to 47.2 inches. The frame clearance is about 27.6 inches and it provides trouble-free throughput.
Own software for the control of all functions.
ATLAS AE_PROFI is a disc cultivator fully compatible with ISOBUS. The BEDNAR EASY CONTROL software provides fully automated folding and unfolding of the machine using a single button, and all working parameters are set by entering the values at the terminal. All the settings, including the working depth, can be comfortably adjusted also during work, which prevents undesirable downtime.
Always the same down pressure on both frames of the disc section.

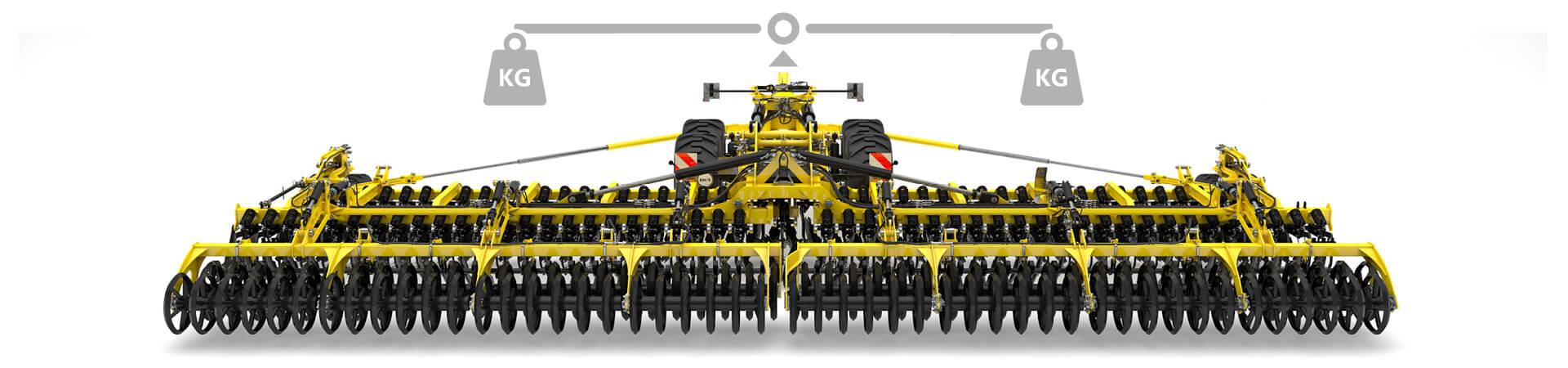

Maintaining the set working depth for even soil profile processing is the foundation of quality soil cultivation. ATLAS AE_PROFI disc cultivators provide the same pressure on discs along the entire machine width thanks to the axle moved forward and the concept of two folding side frames. The structural design of the machine reduces the number of hydraulic cylinders where side frame pressure could be lost. This design also reduces the number of points of lubrication, the overall wear of the machine, and it simplifies manipulation with the machine, both in the field and on the road.
Fast and safe turning at headland.

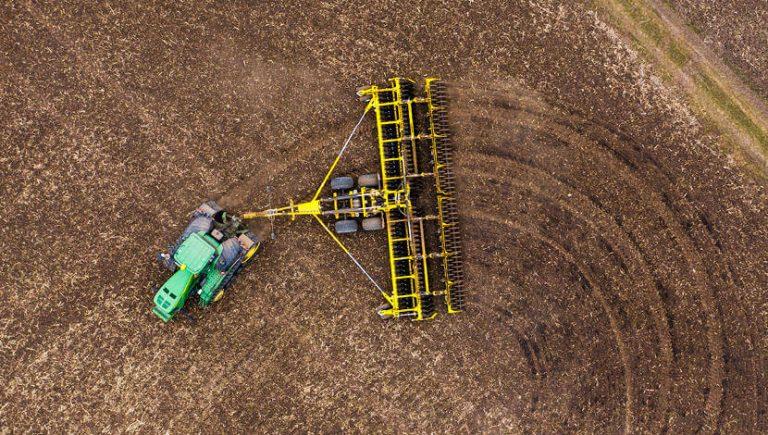

The ATLAS AE_PROFI heavy wide cultivator is manoeuvrable very well thanks to its construction, even at headland. The machine turns using the rear rollers, the front support swivel wheels, and the transport axle. This design eliminates the negative load on the hitch and unloads the tractor when the machine is in the headland position.
Provides compact dimensions and safe transport.

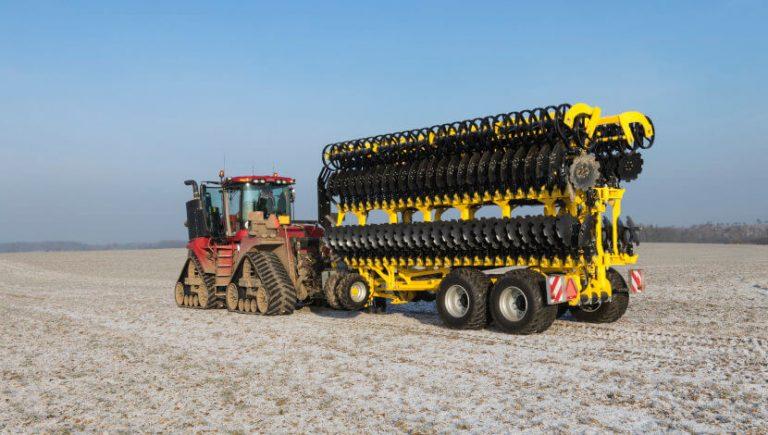

Even with the working width of up to 40.7 feet, the ATLAS AE_PROFI wide disc cultivator is very compact in transportation, because it does not exceed the transport width of 10 feet and the height of the machine is just below 13 feet, even when equipped with double V-RING or U-RING rollers. Such parameters are achieved mainly thanks to the forward side frame folding, towards the drawbar.
Reduced numbers of passes and soil compaction.
The CTF (controlled traffic farming) system eliminates soil compaction and optimises the passes of the individual sets. When working, the individual sets travel across the field in the given grid of the working width (19.7 – 39.4 – 59.1 – 78.7 feet, etc.), which prevents the formation of uneven compaction in the field as well as in the tracks that can be easily tilled.
Only as much oil as actually needed.

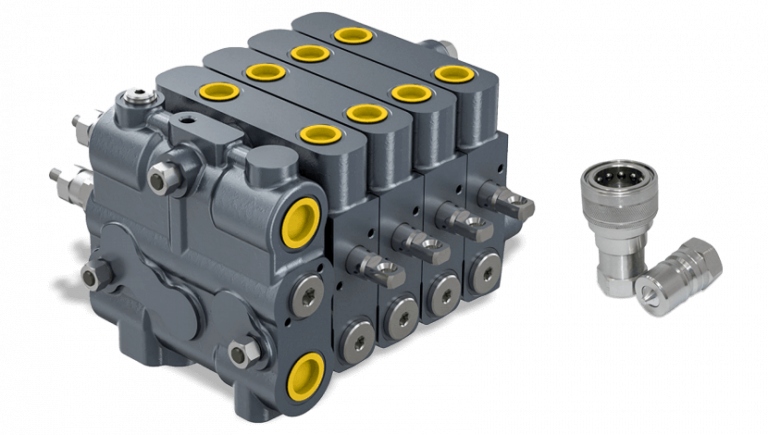

The ATLAS AE_PROFI wide disc cultivator is connected to the tractor’s LOAD-SENSING hydraulic output using only three hoses. The adjustable pump then only delivers as much oil under pressure as needed by the specific task of the individual function; it is all completely automated. The system efficiently uses the pressure in the hydraulics and controls the individual functions that required high output.
TECHNICAL DATA
MACHINE DESCRIPTION
For interactive machine description go to https://www.bednar.com/ca/atlas-ae_profi/
