KEY PROPERTIES
A combined cultivator for cutting crop residue and intense loosening up to a depth of 13.8 inches in one pass.
ACTROS RO cultivator for incorporation of large quantities of matter.
The efficient combination of a disc and chisel section provides two operations in one pass. The high machine clearance, and the spacing of the individual discs and chisels are modified for incorporation of large quantities of organic matter in the form of catch crop, crop residue, or manure.
Excellent cutting and incorporation of crop residue.
The ACTROS RO combined cultivator is especially designed for processing large quantities of crop residue, for example, after grain maize. The ACTROS RO cultivator is equipped with two rows of large serrated discs with a diameter of 27.2 × 0.2 inches which provide excellent cutting and incorporation of crop residue up to a depth of 7.1 inches. The spacing of the individual discs in the row is 16.7 inches, ensuring trouble-free work with high throughput.
For intense loosening up to 13.8 inches.

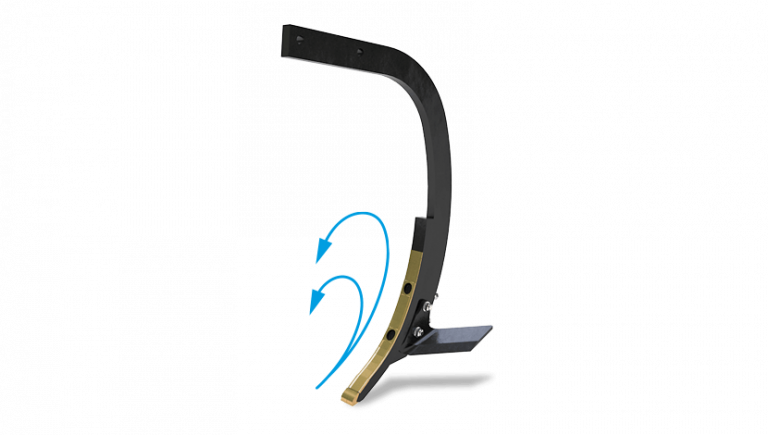

For the intense loosening effect, the ACTROS RO combined cultivator is equipped with two rows of Active-Mix tines. The Active-Mix tines allow soil cultivation up to a depth of 13,8 inches. In one pass, the soil profile is loosened in depth and the soil is intensely mixed.
The smart design allows working without the rear packers.

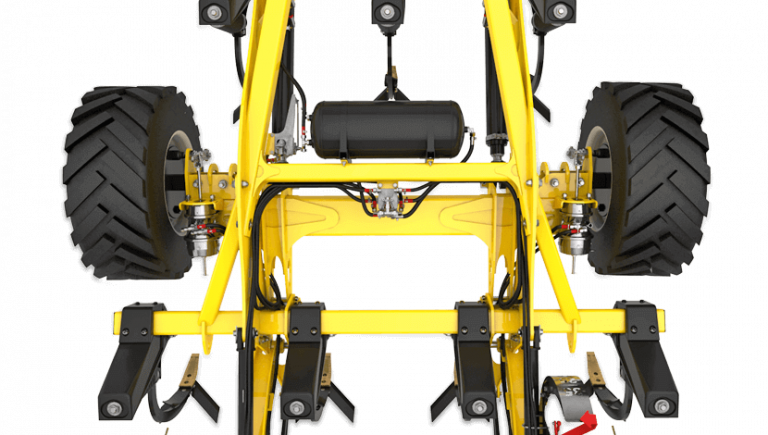

Rear packers might get clogged when cultivating heavy sales in the late season or working in extreme conditions. The integrated axle and the placement of the second row of tines after the axle makes it possible to use ACTROS RO in wet conditions as well, as the rear packers can be easily disconnected or lifted. The integrated axle also facilitates turning at headland, continuous approach into the next take and transport.
Perfect soil profile structure.
The ACTROS RO backfilling section following the second row of tines can be equipped with two types of working parts. The available equipment includes backfilling discs with hydraulic control. There are also simple backfilling rods with mechanical control; hydraulic control is available on request. This section breaks the ridges after the tine section and levels the surface before it is compacted by the rear packers.
TECHNICAL DATA
MACHINE DESCRIPTION
For interactive machine description go to https://www.bednar.com/ca/actros-ro/
